Pediatric Child Blood Oxygen SPO2 Fingertip Pulse Oximeter

Short Description:

  • Pediatric Child Blood Oxygen SPO2 Fingertip Pulse Oximeter
  • One button measurement,fast accurate and comfort
  • Dual color OLED displays SpO2,Pulse Rate,waveform,Pulse bar
  • 4-direction & 6-mode display provide convenient readings
  • Setting alarm range of SpO2 and pulse rate
  • Menu-function setting(beep sounds,etc)
  • Lithium battery;automatically power off
  • Small in size, light in weight, and convenient to carry;

Product Detail

Product Tags

Product Introduction

Operation principle of the instrument is Photoelectric Oxyhaemoglobin inspection technology is adopted in accordance with capacity pulse scanning and recording that two beams of different wavelength of lights(660nm glow and 940nm near infrared light) can be focused onto human nail clip through perspective clamp finger-type sensor.Then measured signal can be obtained by a photosensitive element.Information acquired through which will be shown on two groups of LEDs through process in electronic circuits and microprocessor.

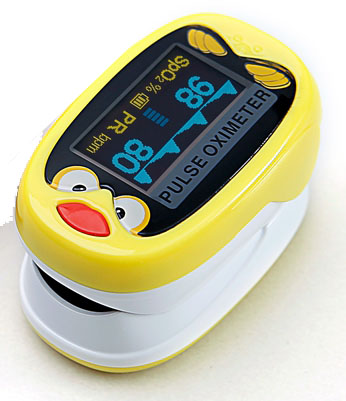

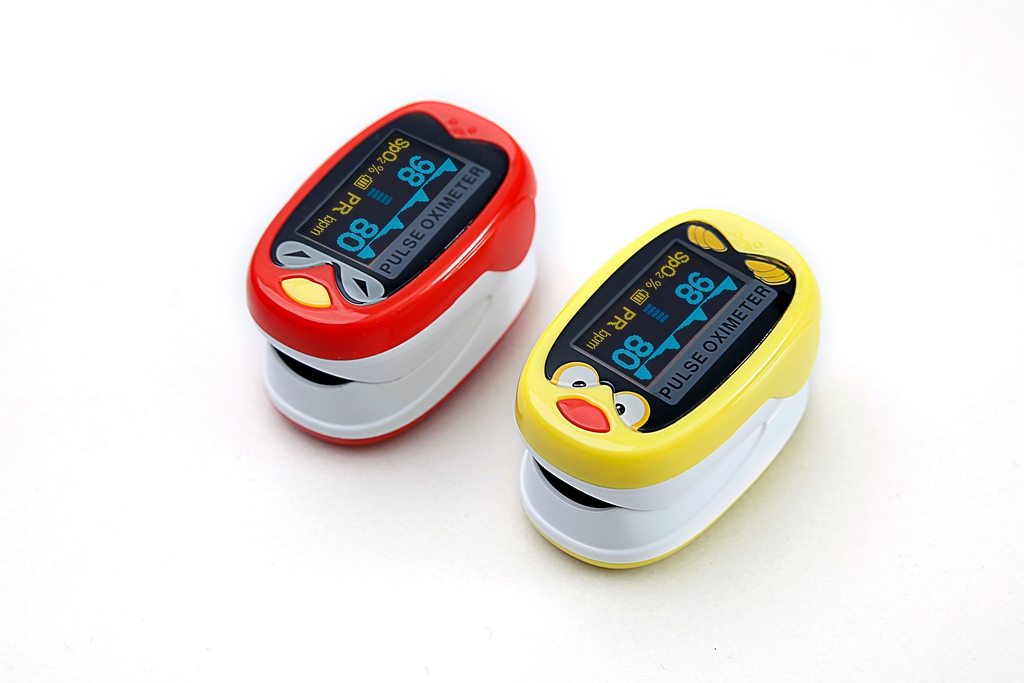

Pediatric child fingertip pulse oximeter is designed for child and pediatric only,the small size and the light weight. Also the attractive color and cartoon type are suitable for these ages when take the measurement.we have yellow color  and red color available.The packing including 1pc oximeter,1pc lanyard,1pc USB cable and 1pc instruction manual.


1.Display type: OLED display


Measurement range: 70%-99%

Accuracy: ±2% on the stage of 70%-99%, no definition(<70%) for SPO2

Resolution: ±1%

Low perfusion performance:PI=0.4 %,SPO2=70%,PR=30 bpm

3.Pulse Rate:

Measurement  range:30-240 bpm

Accuracy: ±1 bpm or ±1%

Resolution:1 bpm

4.Power source:Lithium battery


6.Power consumption: < 30mA

7.Charging time:2.5 hours

8.Stand-by time:48 hours

9.Working time:more than 5 hours

10.Use Environment:Temperature 5℃-40℃,Relative humidity 15%-80%RH

11.Storage condition:Temperature -20ºC-55ºC,Relative humidity: 10%-90%RH,Air pressure: 86kPa-106kPa

How to operate

1.check if the power is ok.

2.Plug one finger into rubber hole of the oximeter(the best to plug the finger thoroughly) before releasing the clamp with the nail upwards.

3.Press button on the front panel.

4.Read relevant data from display screen.

Please use it under parental supervision,For the detailed operation procedure,please read the related user manual carefully and follow it.
